Fuel injectors in modern combustion engines are responsible for delivering the precise amount of fuel to each cylinder. Ensuring their best performance is essential for the engine efficiency and longevity. In this article, we will explore the world of injector testing, delving into the purpose of fuel injectors, the importance of injector testing, preparatory steps and a detailed walkthrough of various testing methods.

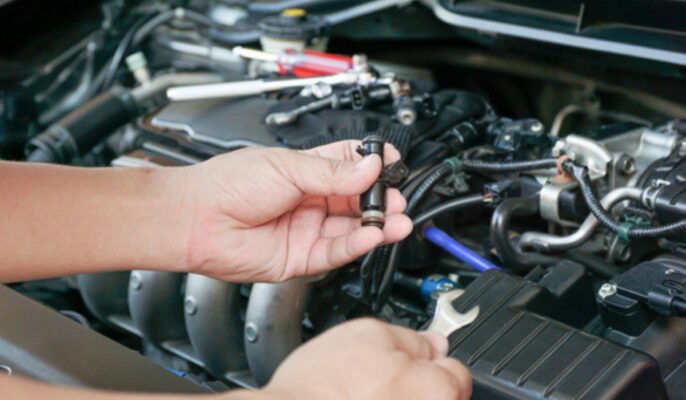

Source: Pinterest (Aaron)
What are fuel injectors?
Fuel injectors are vital components of an engine’s fuel delivery system. They spray a controlled amount of fuel into the engine’s combustion chamber, where it mixes with air for ignition. This precise process enhances engine efficiency, performance and fuel economy.
Why should you carry out injector testing?
Injector testing is crucial for maintaining engine health and performance. Over time, injectors can become clogged, develop leaks or suffer electrical issues, leading to poor fuel atomisation, decreased power, increased emissions and reduced fuel efficiency. Regular injector testing can help detect and address these problems early, preventing costly repairs and ensuring optimal engine operation.
Steps to take before testing fuel injectors
Before diving into injector testing, follow these preparatory steps
Gather tools: Obtain a fuel pressure gauge, multimeter, diagnostic scanner and necessary safety gear.
Safety first: Work in a well-ventilated area, wear safety glasses and disconnect the vehicle’s battery.
Pressure release: Depressurise the fuel system to prevent fuel spray during testing.
Access fuel injectors: Locate the fuel rail and remove any components obstructing access to the injectors.
How to test fuel injectors? Step-by-step guide
Several methods are available to test fuel injectors. Here is a detailed walkthrough of each approach
Injector testing by using fuel spray
- Connect a fuel pressure gauge to the fuel rail and turn the ignition to the ‘On’ position.
- Observe the pressure reading; it should match the manufacturer’s specifications.
- Disconnect the fuel injector connector and attach a U-shaped hose to the injector.
- Apply 12V power to the injector using jumper wires; a clicking sound indicates proper function.
- Watch for a steady and uniform fuel spray pattern; uneven or weak spraying may indicate issues.
Injector testing by listening
- Use a mechanic’s stethoscope to listen to each injector while the engine is idling.
- A consistent clicking sound indicates normal operation; irregular or no clicking may indicate problems.
Testing fuel injectors for leaks
- Depressurise the fuel system. Disconnect the fuel rail.
- Apply compressed air to the fuel rail; any leaks from the injectors indicate problems.
Injector testing by diagnostic scanners
- Use an OBD-II diagnostic scanner to access the engine control module (ECM).
- Select the option to perform an injector balance test.
- The scanner will deactivate individual injectors, and you will observe RPM drop for each one.
FAQs
How often should one test fuel injectors?
It is recommended to test injectors every 50,000 km or as part of regular maintenance.
Can injector testing improve fuel efficiency?
Yes, detecting and addressing injector issues can lead to better fuel atomisation and improved mileage.
What if I find a clogged injector during testing?
Use fuel injector cleaning solutions or have them professionally cleaned.
Can injector testing be done without special tools?
Basic testing such as listening and visual inspection can be done without specialised tools, but diagnostic scanners and pressure gauges enhance accuracy.
Will injector testing harm the engine?
If done correctly and with proper precautions, injector testing would not harm the engine.
Can injector problems trigger check engine lights?
Injector issues can trigger warning lights due to incorrect fuel mixture or emissions irregularities.
