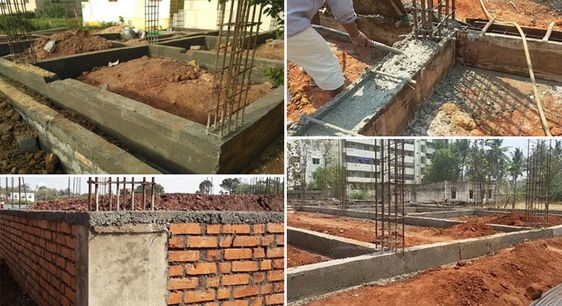

A reinforced concrete plinth beam is built between the wall and its foundation during construction. A plinth beam is a rectangular stone block that supports the pillars and sub-columns of a building. It serves as a wall dividing the ground floor from the ground level. The primary purpose of a plinth is to distribute the weight of the columns across the foundation uniformly.
A plinth beam is installed to stop cracks from the foundation from spreading through the wall above to keep it intact and erect. The plinth beam binds each column of the structure together to minimise the slenderness ratio of the columns in a frame structure.
A superstructure stands above ground level and consists of masonry walls, slabs, columns and beams. The plinth beam separates the superstructure and substructure in a particular building structure. It functions as a tie beam to keep walls and columns together.
known about the i beam
Plinth beam: What is it?
It is a foundation or platform that holds another structure, column, or plinth in place. In construction, the plinth disperses weight and pressure uniformly down a column over a larger area. You can raise buildings above the ground to shield structures from the elements or water.
Purpose of plinth beam
The primary purpose of the plinth height is to shield the superstructure from moisture that can leak in due to direct ground contact. The damp proof course, which offers additional moisture protection, is installed on the top level of the plinth.
According to the bylaws, the plinth cannot be any shorter than 45 cm. The prerequisites for a plinth area are as follows.
- To prevent dampness, moulds and moisture from entering the building
- To transfer a load of a superstructure to the foundation of the building.
- To serve as a retaining wall to prevent the filling part from rising over the higher floor or building
- To improve the architectural appearance of a building
- To provide stability to the building from all sides.
see also about beam tie
What is the use of plinth beam in home construction?
A plinth beam is a crucial structural component in home construction, serving multiple essential functions:
- Uniform load distribution: The plinth beam ensures that the load from the walls is evenly distributed across the foundation, preventing uneven settlement and potential structural issues.
- Crack prevention: By acting as a barrier, the plinth beam prevents cracks originating in the foundation from propagating into the walls above, thereby maintaining the structural integrity of the building.
- Moisture barrier: Positioned above ground level, the plinth beam helps protect the building from moisture ingress, reducing the risk of dampness and mold development within the structure.
- Enhanced stability in seismic zones: In earthquake-prone areas, plinth beams are vital as they tie the structure together, providing additional stability and resistance against lateral forces during seismic events.
- Level base for construction: The plinth beam offers a level surface upon which walls are constructed, ensuring uniformity and alignment throughout the building process.
What is plinth level?
Plinth level refers to the lowest level of a structure or the ground floor of a building. It is the wall between the ground level and the ground floor level, which forms the foundation of the house.
What is the size of plinth beam?
The height of plinth level is normally maintained between 300 mm to 450 mm. As the standard wall width in India is 9 inches, the width of the beam is usually the same, which is 225 mm. As a general thumb rule, the minimum size of RCC plinth beam must not be less than 9” x 9” i.e., 225 mm x 225 mm. This is the plinth beam size in a one-storey structure. For two-storey, three-storey and four-storey structures, the plinth beam sizes are 9″ x 12″ i.e., 225 mm x 300 mm.
Plinth beam: Where is it placed?
Source: Pinterest
A portion of the superstructure is in between the top of a tie beam at the top level of the earth surrounding the structure present before the construction. This building area is directly above the ground, between the floor’s surface and the surrounding ground’s surface.
The design of the structure determines the application of reinforcement. Constructors use a minimum of two primary bars with a ten mm diameter at the top and bottom for their construction.
see also about the bar bending schedule
Plinth beam: How is it different than tie beam?
| Plinth beam | Tie beam |
| It is at the ground level. | It can be at any level. |
| The main purpose is to distribute the load to the framework evenly. | It serves as a length breaker for columns in cases where the floor height is exceptionally high and does not carry any floor loads. |
| Prevents cracks. | Prevents columns from buckling. |
see also: Know about beam structure and types of beam
Plinth beam: Dimensional requirements
Source: Pinterest
Height of a plinth beam
The height of a plinth beam is adjustable. The structural requirements should guide the height selection.
Width of a plinth beam
The width of the plinth is mostly the same as the width of the wall. It may occasionally be a little bit thicker than the walls.
Depth of a plinth beam
The plinth rises 300 to 450 millimetres above the ground. Baseboards are installed at least 150 mm above the natural level.
Overall depth ratio of a plinth beam
The overall depth ratio should be at most 18.
The cross-sectional dimension of a plinth beam
The appropriate cross-sectional area of the plinth beam is chosen based on the loading and deflection requirements of the code.
Shear reinforcement of a plinth beam
The maximum permitted shear stress for the specific grade of concrete, as listed in table 20 of IS 456:2000 regulation, should be altered during the design of the plinth beam. The formula in the code determines the spacing for the stirrup or the shear reinforcements. The computed spacing must be at most 30 cm.
Site preparation for plinth beam construction
Before the construction of a plinth beam, thorough site preparation is essential to ensure the stability and durability of the structure. This process involves conducting a site survey and performing soil testing to evaluate the land’s suitability for construction.
Site Survey
A detailed site survey helps in understanding the topography and layout of the land. It identifies factors like slope, drainage patterns, and any potential obstacles that may affect construction. Proper assessment of the site ensures that the foundation is designed to adapt to the natural contours of the land and is resistant to environmental challenges.
Soil Testing
Soil testing is a crucial step in determining the bearing capacity, type, and moisture content of the soil. These factors directly influence the foundation design and the reinforcement requirements of the plinth beam. For example:
- Bearing Capacity: Ensures the soil can support the weight of the structure without excessive settlement.
- Soil Type: Identifies the presence of clay, sand, or silt, which affects compaction and drainage.
- Moisture Content: Helps in understanding groundwater levels, which is vital for preventing water seepage and ensuring long-term stability.
Plinth beam: Materials requirements for a plinth beam of the building
The construction begins with placing the framework of the building appropriately. After setting the framework, concrete is poured with the steel rods.
-
For concrete
The concrete strength required for constructing a plinth beam is 20MPA, and the preferred concrete grade is M20. If there are any mixing-related losses in the concrete, add 20% more cement to the concrete mix. The poured content is adequately reduced to the required amount.
-
For steel rods
According to the rules, the bottom of the plinth beam has two reinforcing steel bars with a minimum diameter of 12mm. On the top are two more steel bars for reinforcement with a diameter of at least 10 mm.
The reinforcement bars must have a concrete cover of at least 25mm thickness. The spacing between stirrups must be 15 cm, and the stirrups’ diameter cannot be less than 6 mm.
Importance of material selection
The selection of high-quality materials is a critical aspect of constructing a durable and reliable plinth beam. The materials used must be capable of withstanding various structural loads, environmental factors, and long-term wear and tear. Proper material selection ensures the longevity and safety of the entire structure, as the plinth beam serves as the foundational element that distributes loads to the foundation.
Concrete
Using high-strength concrete, such as grade M20 with a compressive strength of 20 MPa, is essential for achieving the required durability and load-bearing capacity. High-quality concrete resists cracking, moisture penetration, and environmental degradation, which are crucial for maintaining structural integrity.
Steel Reinforcement
The reinforcement bars used in the plinth beam should have the appropriate tensile strength and diameter as specified in the design. High-grade steel enhances the beam’s ability to resist bending, shear forces, and tensile stresses. Ensuring a minimum concrete cover over the reinforcement bars protects them from corrosion and increases the overall lifespan of the beam.
Additives and Mix Adjustments
For enhanced performance, additives such as plasticizers or water-proofing agents can be incorporated into the concrete mix. These materials improve workability and protect the plinth beam from moisture-related issues. Additionally, compensating for mixing-related losses by adding extra cement ensures that the final concrete mix achieves the desired strength.
Plinth beam: Construction procedure
Determine the width of the markup
Generally, the plinth beam’s markup width is half the foundation’s width. If the foundation is about 12 inches broad, the plinth beam’s markup width must be 6 inches. The width of the plinth beam markup should line up with the foundation of the outer edge.
The framework of the beam is constructed using at least four reinforcing bars and positioned per the specifications. The constructor uses two reinforcement bars with a diameter of 12mm at the bottom and two with a minimum diameter of 10mm at the top.
Adjust the framework
The next step includes placing the framework with wooden, plastic or steel planks. Set planks according to the architecture before pouring the concrete.
all about What is foundation, types, dimensions, functions, and historic types
Pour the concrete
Pour the concrete with the right consistency after fixing the framework of the building. Pour it uniformly without leaving any rough area.
After setting the framework, concrete of the right consistency must be poured uniformly into the plinth beam formwork. To ensure a strong and durable beam, it is essential to compact the concrete properly during and after pouring.
The use of vibrators is crucial in this step. Vibrators help eliminate air pockets trapped within the concrete, ensuring a dense and void-free structure. This process improves the bond between the concrete and reinforcement bars, enhancing the beam’s overall strength and durability. Additionally, compacted concrete achieves better resistance to cracking and moisture penetration.
Care should be taken to avoid over-vibration, as it can lead to segregation of aggregates and weaken the mix. Properly compacted concrete ensures a uniform and high-quality finish, contributing to the plinth beam’s long-term performance.
Dry the concrete
The concrete is left to dry for at least 24 hours. Cure the concrete after 7-15 days.
Source: Pinterest
Quality checks during construction
Quality checks are vital to ensure the plinth beam’s structural integrity. Verify reinforcement bar sizes, formwork alignment, and stability to meet design specifications. Ensure proper curing for 7–15 days to prevent cracks and achieve the required strength, ensuring the beam’s durability and performance.
Learn about What is grillage foundation and how does it work?
Plinth beam: Significance
Some of the most significant benefits of using a plinth while building a house are:
- It acts as a deterrent or supporting wall, which keeps the raised floor of the building above the bottom floor filled with concrete.
- It uniformly disperses the load of the columns to the foundation.
- It builds the foundation of a building.
- The plinth prevents the building’s top structure from becoming damp from the base floor.
- It enhances the aesthetic appeal of the building.
- Plinth beams are a barrier between homes and buildings to prevent water seepage. A waterproofing sheet is installed above ground level to guard against any harm caused by additional moisture or moulds.
- It guards against constructing cracks as the foundation settles.
- It provides the residential unit with strength and longevity.
- Typically, homes are built 150–300 mm above the level of the nearby road. The plinth is a retaining wall for the compacted dirt that fills the area between the foundation and the plinth’s top.
- Stresses cannot be entirely absorbed by foundations when there are several settlements. Stress causes the base made of rubble to crack, which would then gradually cause the brick wall to crack. Therefore, a plinth beam below these walls aids in bearing the extra tension, bending, and shear stresses. The brick wall’s cracking decreases as a result.
- Plinth beams play a crucial role in enhancing a structure’s stability by tying columns and walls together, creating a unified framework. This design helps distribute seismic and lateral forces evenly, reducing stress concentration and minimizing the risk of structural failure during earthquakes or high wind conditions.
Plinth beam applications in earthquake-prone areas
- In regions prone to seismic activity, plinth beams play a critical role in enhancing the structural resilience of buildings. While their primary purpose is to distribute loads uniformly and prevent cracks from spreading, they also serve as a vital component in maintaining the stability of structures during earthquakes.
- Plinth beams act as a unifying framework that ties columns and walls together, reducing the likelihood of structural failure caused by lateral forces. This interconnected framework helps the building withstand seismic shocks by distributing these forces more evenly across the structure, minimizing stress concentration points.
- Additionally, the reinforcement used in plinth beams is designed to absorb and dissipate the energy generated during ground movements, further enhancing the overall stability of the building. For structures in earthquake-prone areas, ensuring the proper design, construction, and reinforcement of plinth beams is essential to safeguard against potential damage and collapse.
- By incorporating plinth beams into the foundation system, buildings can achieve greater durability and safety, even in the face of natural disasters.
see also about Shallow foundation: Meaning, types, construction standards, designing steps, and pros and cons
Load Factors for Plinth Beam Design
The design of a plinth beam involves detailed calculations to ensure its ability to bear loads effectively while maintaining cost efficiency. The following are the key load factors that must be considered during the design process:
- Load from the Wall Above the Plinth Level:The plinth beam must support the weight of the masonry wall constructed above it. This includes the self-weight of the wall, additional live loads, and any imposed loads that might arise from structural elements attached to the wall. Proper assessment of these loads ensures the beam’s durability and prevents cracking or failure.
- Passive Pressure Exerted by the Soil Below the Plinth:The soil around the foundation exerts passive pressure on the beam. This pressure varies based on the type of soil, its compaction level, and the moisture content. A well-designed plinth beam helps distribute this pressure evenly, protecting the foundation from stress-related issues such as buckling or settlement.
- Differential Foundation Settlement Loads:Uneven settlement of the foundation can occur due to variations in soil strength, groundwater levels, or construction errors. This can impose additional bending and shear stresses on the plinth beam. To counteract these stresses, the beam must be designed to accommodate slight movements while maintaining structural integrity.
- Seismic or Dynamic Loads:In regions prone to seismic activity, plinth beams must also account for lateral forces generated during earthquakes. The beam helps tie the structure together, reducing the risk of collapse during ground movements.
- Concentrated Loads from Openings or Structural Projections:Openings such as doors and windows near the plinth beam can create concentrated stress points. Additional reinforcement is often required in these areas to ensure stability.
- Live and Environmental Loads:Plinth beams may also experience temporary live loads such as construction equipment or environmental loads like wind or water pressure, particularly in flood-prone areas.
Grade Beam vs. Plinth Beam
- Grade Beam: A reinforced concrete beam placed at or below ground level, used to support walls or columns by transferring loads to footings or piles. It’s used in poor soil conditions where the ground can’t directly support the structure. Grade beams are heavily reinforced to handle bending and shear forces.
- Plinth Beam: A horizontal beam at the plinth level (above ground) that distributes the load of walls to the foundation. It helps prevent cracks from spreading upwards and provides stability to the structure. It ties columns together and separates the substructure from the superstructure.
Formwork for Plinth Beams
Formwork is a temporary mould used to shape and support the concrete during the construction of plinth beams. It holds the concrete in place until it hardens and gains sufficient strength.
Typically made from materials like wood, steel, or plastic, the formwork is assembled into panels or sheets, supported by props or braces to ensure stability. It must be designed to withstand the pressure of the wet concrete. The plinth beams are reinforced with steel bars (rebars) to increase strength and durability.
The formwork ensures precise dimensions and surface finish, guiding the concrete to be poured and compacted in the correct area. Once the concrete has set, the formwork is removed, leaving a solid foundation for the building.
Common construction mistakes
Improper reinforcement placement
Incorrect spacing or misalignment of steel bars weakens the plinth beam, reducing its load-bearing capacity and making it prone to cracks.
Incorrect concrete mix
Using a weak or imbalanced concrete mix affects the beam’s strength and durability. Following the correct mix ratio ensures proper load distribution and resistance to stress.
Poor curing
Inadequate curing leads to cracks and reduces the beam’s durability. Proper water curing for at least 7–15 days ensures strength and longevity.
Material suitability for different regions
Humid and coastal regions
Aluminium and stainless steel are ideal for plinth beams in coastal areas as they resist moisture and salt exposure corrosion. Marine-grade concrete with waterproofing additives helps prevent water infiltration and deterioration.
Earthquake-prone regions
Reinforced concrete with high ductility and properly placed reinforcement bars is essential for seismic resistance. High-strength steel rebars (Fe500D or Fe550D) enhance flexibility, reducing the risk of structural failure during tremors. Lightweight concrete can also help in minimising damage.
How do you know if your home’s plinth beam is failing?
Identifying signs of a failing plinth beam is crucial for maintaining your home’s structural integrity. Here are some common indicators:
Visible cracks
Vertical or diagonal cracks: These may appear on walls above the plinth beam, suggesting possible flexural or shear failures.
Horizontal cracks: Found along the length of the beam, these can indicate excessive bending or compression issues.
Beam deflection
Sagging or tilting: A noticeable dip or tilt in the beam suggests it is not adequately supporting the load, potentially due to improper reinforcement placement or material degradation.
Moisture intrusion
Dampness or mold: The presence of moisture, mold, or mildew on walls near the plinth beam may indicate cracks or gaps allowing water ingress, compromising the beam’s integrity.
Foundation issues
Uneven floors or settlement: If floors become uneven or you observe signs of foundation settling, it could be due to a compromised plinth beam failing to distribute loads evenly.
Housing.com POV
In construction, plinth beams play a crucial role in providing stability and preventing foundational issues from affecting the structure above. Beyond simply supporting columns and walls, plinth beams protect buildings from moisture damage and distribute loads effectively. Their proper design, reinforcement, and installation are vital to ensuring the longevity and safety of any building. When considering structural integrity, investing time and care into constructing a plinth beam will pay off in the overall durability of the project
FAQs
What is the size of a basic plinth beam?
The width should be the same as the wall size and vice versa.
What is the most commonly used plinth height?
The primarily used plinth height is around 300mm to 400mm.
What is the standard ratio of the plinth beam constituents?
The standard ratio of the concrete mix used in the plinth beam is 1:2:4.
